RV 2098

RV 2098 Wandsender

Datasheet View Catalog

Specifications

For indoor wall or ceiling mounting, with attractive box. Low cost room temperature sensor
Colourwhite
MaterialMoulded ABS
Dimensions86 x 86 x 30 mm
Cable entryin bottom
RangeCustomer to specify standard - 10 / + 50 °C
Output4 - 20 mA
Style / Connection2-wire mounting
Power supply12 - 35 Volt Maximum
Line Resistance

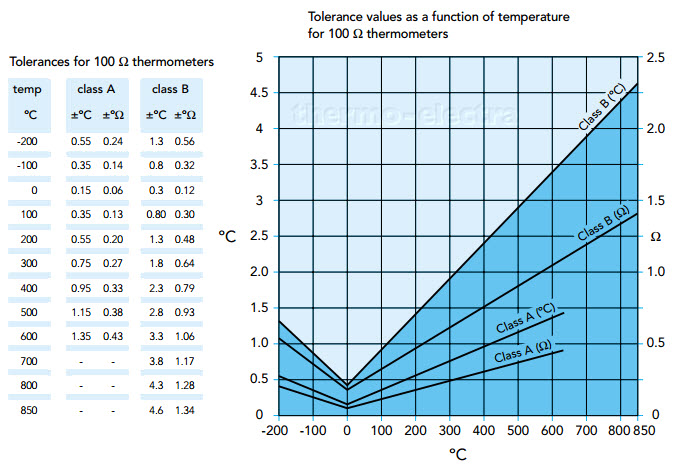

Single Pt 100 IEC 60751 class B
Overall accuracy+/- 0,2 °C
MODbus transmitter

Customisation possibilities

You can remark the customisation in your quote

Productcode RV 2098
